USB-C Hub design and application
In pursuit of thinness and longer battery life, major manufacturers continue to reduce the size and weight of notebooks, such as reducing ports, and the MacBookPro has only Type-C ports on the entire machine. In general, the port is sufficient, but if you want to connect more devices, the interface is not enough. So the multifunctional Hub was born. What is a USB Hub? What‘s the use?
What is a USB Hub?
Hub is a device that can expand the functionality of the laptop, consists of an interface and slot to connect a variety of external devices, used to compensate for the lack of laptop interface.
Application of USB Hub
With the popularity of Type-C interface and more market share, we developed a series of USB Type-C Hub, mainly for Type-C interface function expansion, which can easily realize Type-C extension USB3.0 interface, DP/VGA/HDMI display interface, Type-C charging and other applications.

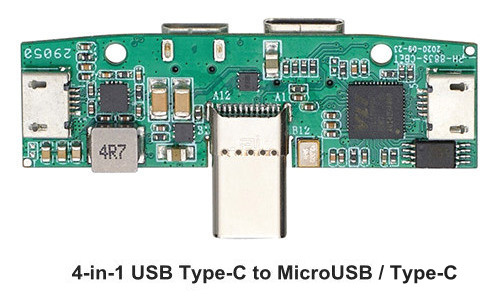

Application 1:
4-in-1 USB Type-C to MicroUSB and Type-C Hub
Input: USB3.1 Type-C Male
Output: Type-C × 2 and Micro-USB × 2
Application 2：
Type-C to Type-CF/HDMI/USB3-A/TF/12V-wireless-charging
Input: USB3.1 Type-C Male
Output: Type-A3.1 × 4 and Type-C Female and TF port with 12V wireless charger

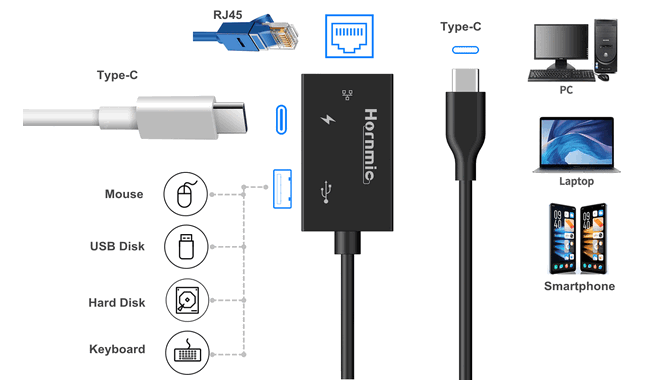

Application 3：
Type-C Hub 3-in-1 Multiport Adapter with Type-C, USB-A, Ethernet RJ45
USB Standard : USB 3.0
Plug Type : USB Type-C Male to Type-C Female, USB-A Female, Ethernet RJ45 Female
Application : Charging and data transfer for PC Laptop Smartphone
Data Transfer Speed : Up to 10 Gbps
Electric Current : Up to 5A
By HornmicLink_Bob Kuo @231012 20:56
